July 28, 2016
MB Star C3 DAS Fault (1.1)-1.501.9504 (Solved)
Fault (1.1)-1.501.9504
Initialization of diagnosis multiplexer failed. Possible causes: The link between the diagnosis multiplexer and the diagnostic socket is interrupted. The link between the diagnosis multiplexer and the diagnostic unit is interrupted. The voltage supply at the diagnostic socket (circuit 30 and (or) circuit 31) is faulty.
I have had a Mercedes diagnostic machineMB STAR C3for a while and i decided to try and make it work, but every time i try to communicate with the car i get an error message saying :
Fault (1.1)-1.501.9504
Initialization of diagnosis multiplexer failed. Possible causes: The link between the diagnosis multiplexer and the diagnostic socket is interrupted. The link between the diagnosis multiplexer and the diagnostic unit is interrupted. The voltage supply at the diagnostic socket (circuit 30 and (or) circuit 31) is faulty.
Error codes analysis:
error code 95xx: C3 mux settings is committed
error code 9551: means no C3 mux is connected
error code 9504:meansStarC3is connected and error in muxerror code 9500: means C3 is connected but error in COM settings to COM2
error code 99xx: means C4 mux settings is committed
So the error is 9504 means mux is read by software and mux is burned
error code 9551: means no C3 mux is connected
error code 9504:meansStarC3is connected and error in muxerror code 9500: means C3 is connected but error in COM settings to COM2
error code 99xx: means C4 mux settings is committed
So the error is 9504 means mux is read by software and mux is burned
But C3 mux is working on 3 main communication objects:
1- CanBus
2- K-line
3- L-line
your mux may still work if one circuit is burned like CanBus circuit burned but still you have other 2 working on K-line and L-line
1- CanBus
2- K-line
3- L-line
your mux may still work if one circuit is burned like CanBus circuit burned but still you have other 2 working on K-line and L-line
Detailed possibilities of unsuccessful communication:
1 COM port setup improperly or broken COM serial on the laptop
2 New models that old STAR C3 cannot support
3 Something wrong with C3 diagnostic mux
4 Something wrong with cables
Thus, MBSTARTOOL advice is to check your mux on other laptop, OR you may find your COM serial on your laptop is broken or do opposite check other mux on your laptop to find what is wrong. if all is ok, that is two possible occasions:
1 the model cannot not be supported by Star c3 and you should buySD connect c4
2 the software can not run ok and you can try newV2016.5 MB Star C3 Software
Disclaimer:
TRY ON YOUR OWN RISK!
Posted by: mbbenzstar at
06:32 AM
| No Comments
| Add Comment
Post contains 320 words, total size 3 kb.
July 26, 2016
SDconnect Toolkit Incorrect parameter fault (599) Solution
Here is theresolution of Mercedes MB Star diagnosisSD Connect C42016.05 Xentry SDconnect Toolkit incorrect parameter fault.
Problem:
I have installed05.2016 XDOSon Win7 32bit, everything were ok during installation and after, but when i tried to connect my sd connect via Lan i got message like on photo that parameters are incorrect. I have reinstalled XDOS again and got the same message, then i tried to install on 64-bit system and this time everything works. What could be the reason?
I have installed05.2016 XDOSon Win7 32bit, everything were ok during installation and after, but when i tried to connect my sd connect via Lan i got message like on photo that parameters are incorrect. I have reinstalled XDOS again and got the same message, then i tried to install on 64-bit system and this time everything works. What could be the reason?
Customer solution:
Change your computer name with word A - Z , i think your computer name with Russian Word,
after change computer name, reboot PC..
All will be fine..
Result:
It worked. 2016.05 Xentry now runs no problem.
Thank you a lot!!!
Posted by: mbbenzstar at
05:53 AM
| No Comments
| Add Comment
Post contains 130 words, total size 2 kb.
July 21, 2016
how to solve Xentry error 2221-45 No access authorization?
One of customer had the Xentryerror 2221-45 No access authorization when running MercedesMB SD Connect C42016.07V Xentry diagnostic software. Here is the final solution provided by mbstarhsop.com engineer.
Problem:
（2221-45） No access authorization forXENTRYDiagnostic was found on the server. You must contact the User Help Disk.
Solution:

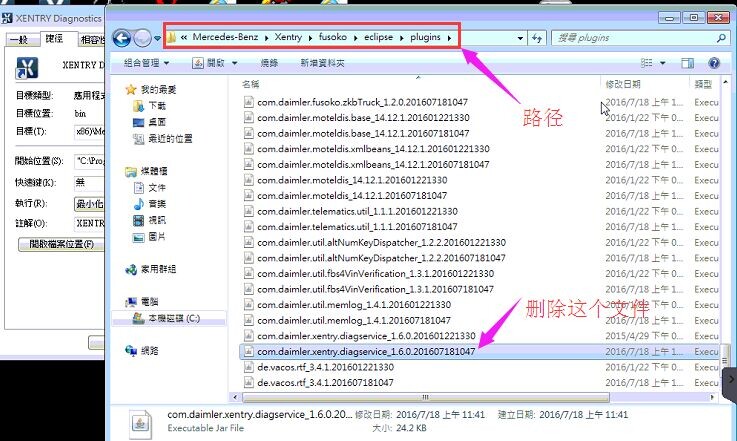

Browse toC:\Mercedes-Benz\Xentry\fusoko\eclipse\plugins, deletecom.daimler_xentry.diagservice_1.6_0.2016.07181047file.
Problem has been solved.
Posted by: mbbenzstar at
08:53 AM
| No Comments
| Add Comment
Post contains 65 words, total size 3 kb.
July 16, 2016
MB SD C4 Device not connection solution
http://www.mbstartool.com/service/mbstartool-2016-black-friday-promotion-12171.html http://blog.mbstartool.com/2016/07/16/sd-connect-c4-device-no-connection/
One of our customer had the device not connection problem when using MercedesMB SD Connect C4diagnostic system. Here is the working solution provided by mbstartool.com engineer.
Solution:
You are required to update the MB SD C4 firmware follow the guide here:
He did follow the solution but still had the file for software update error
The problem is that the names are wrong in file "SDconnectToolkit", you need to correct them as:
Update_automatic , Update_manual ; Update_Special
Customer feedback:
this was the right solution of the Problem.
The Names were wrong.
Thank you very much for your help.
good news !mbstartool is doingBlack Friday promotions :
Posted by: mbbenzstar at
02:25 AM
| No Comments
| Add Comment
Post contains 121 words, total size 4 kb.
July 15, 2016
2016.7V SD Connect C4 DAS Xentry for Win7 Win8
Latest version Mercedes-Benz2016.7V MB Star diagnosis DAS Xentryfor SD Connect C4 is available in mbstartool.com.
Latest version:V2016.07
Multi-languages:English, Chinese, Croatian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Spanish, Swedish & Turkish
You can log in Daimler AG program without user name and password needed, it is used to check price for Benz vehicle accessories.
Support Windows 7 System. WIN7 HDD do not support HHT-WIN!Software version newer than V2015.12 does not support HHT-WIN!
Product software includes: (Version: 2016 )
1.D-A-S / Xentry 2016.07: the automatically Diagnosis Assistance System ,Concise interface and straightforward operation with IB M high-quality computer can realize the quick and accurate code reading and the whole car system testing
2.W-I-S net 2016.06: Workshop Information System Supply the whole view of the wiring diagram in a car,component location diagram and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -all in detail.
3.EPC.net 2016.06: Electronic Parts Catalog
4.ST Finder 2016
art location finder
5.STARUTILITIES: the movement management system and self-test
6.SDMEDIA 2014
7.PL70
2016.7V SD Connect C4 Software Display:
; box-shadow: rgba(0, 0, 0, 0.0980392) 1px 1px 5px; padding: 5px; position: relative;" border="0" alt="2016.07-das-xentry" />
; box-shadow: rgba(0, 0, 0, 0.0980392) 1px 1px 5px; padding: 5px; position: relative;" border="0" alt="mb-star-2016.07-1" />
; box-shadow: rgba(0, 0, 0, 0.0980392) 1px 1px 5px; padding: 5px; position: relative;" border="0" alt="mb-star-2016.07" />
; box-shadow: rgba(0, 0, 0, 0.0980392) 1px 1px 5px; padding: 5px; position: relative;" border="0" alt="xentry-2016.07" />
Star Finder 2016
EPC.net 2016.06
Star Finder 2016
Price List PL70
V2016.07 MB SD C4Software Function:
1.1989~up to now Car, Bus, Truck, Sprint, Smart ;
2. All electric system Diagnostic;(Do not include flash code)
3. reading trouble code
4. erasing trouble code
5. live-data
6. adaptation
7. component testing
8. maintenance
9. information consultation
10. component location diagram
11. wiring diagram
Testable system:
ENGINE
AUTO-SPEED
AIRCONDITIONAL SYSTEM
SRS
ABS
ASR
MPL
GM
Bz ORIGINAL ANTI-THEFT
DASX SYSTEM
KEYZESS GO SYSTEM
OBD-II SYSTEM
Posted by: mbbenzstar at
01:58 AM
| No Comments
| Add Comment
Post contains 284 words, total size 15 kb.
July 14, 2016
How to solve MB SD C4 HTT-WIN failed to communicate
For sd connect c4 firmware update, i referred to:
This is the firmware the mux is on now:
It is a long story...
I recently got aMB SD Connect C4clone (a low quality one by its looks)
The multiplexerI got shipped with the following firmware:
The multiplexerI got shipped with the following firmware:
OS: 2.2.2
CSD: 2.03
When I tried to use the mux on this firmware in 03.2014 XENTRY, I was not able to connect to the car and kept getting errors. So I watched webmaster's SD connect videos and renamed the 3 update folders in C:\Program Files\SDconnect Toolkit and it worked! XENTRY was working well.
The problem was when I was unable to get HHT-WIN to work. After reading around on forums, I sawthis post (post #5)
- and realized that renaming the update folders may be the cause of HHTWIN not working.
A this point, I thought of using webmaster's method to update the mux and rename back the update folders to original name.
Before updating the mux, I wanted to rename back the update folders to original and open HHTWIN through DAS standalone and test if it works - (this is because I thought that only XENTRY would attempt to install updates to the mux (which might not be safe as using webmasters method to update is safest)
So I renamed back the update folders to original names and restarted the PC and mux. I opened HHTWin through DAS standalone and surprise surprise, it updated the mux after opening HHTWin:
The update happened even though I had not inserted any batteries in the SD connect! After the update, the mux rebooted and HHTWin was working perfect!
For sd connect c4 firmware update, i referred to:
http://blog.mbstartool.com/2015/08/25/instruction-for-update-and-install-v2-30-mb-sd-connect-c4-mux/
This is the firmware the mux is on now:
I tested it with XENTRY without renaming the update folders and it works well - no more errors. So here i suggest you to but SD connect c4 from a reputable site likembstartool.com, they sells sd c4 with OS: 2.3 and CSD: 2.11.2 of high quality, but for HHTWin, it must be with software before2015.12version or even earlier.
Now I seem to recall this may be how my HQmultiplexergot updated to latest firmware (by using HHTWin in 3.2014 XENTRY), although at that time I did not know aboutMB SD C4firmware, so I may not have noticed.
Posted by: mbbenzstar at
03:36 AM
| No Comments
| Add Comment
Post contains 380 words, total size 5 kb.
How to solve MB SD C4 HTT-WIN failed to communicate
For sd connect c4 firmware update, i referred to:
This is the firmware the mux is on now:
It is a long story...
I recently got aMB SD Connect C4clone (a low quality one by its looks)
The multiplexerI got shipped with the following firmware:
The multiplexerI got shipped with the following firmware:
OS: 2.2.2
CSD: 2.03
When I tried to use the mux on this firmware in 03.2014 XENTRY, I was not able to connect to the car and kept getting errors. So I watched webmaster's SD connect videos and renamed the 3 update folders in C:\Program Files\SDconnect Toolkit and it worked! XENTRY was working well.
The problem was when I was unable to get HHT-WIN to work. After reading around on forums, I sawthis post (post #5)
- and realized that renaming the update folders may be the cause of HHTWIN not working.
A this point, I thought of using webmaster's method to update the mux and rename back the update folders to original name.
Before updating the mux, I wanted to rename back the update folders to original and open HHTWIN through DAS standalone and test if it works - (this is because I thought that only XENTRY would attempt to install updates to the mux (which might not be safe as using webmasters method to update is safest)
So I renamed back the update folders to original names and restarted the PC and mux. I opened HHTWin through DAS standalone and surprise surprise, it updated the mux after opening HHTWin:
The update happened even though I had not inserted any batteries in the SD connect! After the update, the mux rebooted and HHTWin was working perfect!
For sd connect c4 firmware update, i referred to:
http://blog.mbstartool.com/2015/08/25/instruction-for-update-and-install-v2-30-mb-sd-connect-c4-mux/
This is the firmware the mux is on now:
I tested it with XENTRY without renaming the update folders and it works well - no more errors. So here i suggest you to but SD connect c4 from a reputable site likembstartool.com, they sells sd c4 with OS: 2.3 and CSD: 2.11.2 of high quality, but for HHTWin, it must be with software before2015.12version or even earlier.
Now I seem to recall this may be how my HQmultiplexergot updated to latest firmware (by using HHTWin in 3.2014 XENTRY), although at that time I did not know aboutMB SD C4firmware, so I may not have noticed.
Posted by: mbbenzstar at
03:36 AM
| No Comments
| Add Comment
Post contains 380 words, total size 5 kb.
July 12, 2016
Initialization of the EPC Database Has Failed Solution
Here is the customer solution to MB Star diagnosis
EPC.netsoftware"initialization of the epc database has failed" error.
Problem:
Does anyone know how to resolve the following error: "initialization of the epc database has failed" ?
for EPC 2.2016 (downloaded database)
running on windows 7 ultimate x64
i do everything but all solutions in vain
- downgrade Java version
- kill TBmux32.exe process when i installing ewa
- turn off UAC
-run admin tool "as administrator
Does anyone know how to resolve the following error: "initialization of the epc database has failed" ?
for EPC 2.2016 (downloaded database)
running on windows 7 ultimate x64
i do everything but all solutions in vain
- downgrade Java version
- kill TBmux32.exe process when i installing ewa
- turn off UAC
-run admin tool "as administrator
valid keys are provided, but regarding permissions as workshop i dont know this point
I uninstall EWA completely, remove it from windows registry, delete DB folder, restart PC, start installing everything from scratch.. still the same error msg!
Ispentsome time in investigating the solution and finally solved the problem with the guidance of MB owner.
Solution:
Look what I did but don't follow yet:
1. Stopped all EPC/WIS/Core/Application services.
2. Renamed E:\db folder to E:\db1
3. I used CleanEWAInstallation.vbs located in the installation DVD\ewa\tools
4. Rebooted.
5. Manually deleted the ewa folder from its installed location (C:\Program Files (x86) in your case).
6. Manually deleted all ewa keys from the registry (It would take less than 10 minutes).
7. Renamed E:\db1 folder back to E:\db. As you see I did NOT delete E:\db folder as it only should be deleted if you are sure that you have corrupted EPC/WIS databases, otherwise it will waste your time copying the ROM files again.
8. Uninstalled Daemon Tool
9. Rebooted
10. Installed Alcohol 120%. (May ask to reboot before completing the installation).
11. Mounted EPC 02.2016 B1 DVD.
12. Installed ewa in C:\Program Files not in C:\Programme as installed before.
13. Added EPC/WIS keys.
14. Installed EPC database. (It will only take seconds as all files already there in the E:\db folder).
15. Tested EPC and working.
16. Installed WIS database. (It will also take only seconds as all files already there in the E:\db folder). It might ask for the EPC b1, use EPC 06.2016 B1 update DVD.
17. Tested WIS and working.
18. UpdateEPCand WIS to version 06.2016.
To your case I suggest that you follow my instructions except step 6 where registry keys are manually deleted. This could cause your operating system to malfunction if you are not sure what you are doing.
Also make sure that you use different ewa folder for installation. I suggest c:\ewa
Look what I did but don't follow yet:
1. Stopped all EPC/WIS/Core/Application services.
2. Renamed E:\db folder to E:\db1
3. I used CleanEWAInstallation.vbs located in the installation DVD\ewa\tools
4. Rebooted.
5. Manually deleted the ewa folder from its installed location (C:\Program Files (x86) in your case).
6. Manually deleted all ewa keys from the registry (It would take less than 10 minutes).
7. Renamed E:\db1 folder back to E:\db. As you see I did NOT delete E:\db folder as it only should be deleted if you are sure that you have corrupted EPC/WIS databases, otherwise it will waste your time copying the ROM files again.
8. Uninstalled Daemon Tool
9. Rebooted
10. Installed Alcohol 120%. (May ask to reboot before completing the installation).
11. Mounted EPC 02.2016 B1 DVD.
12. Installed ewa in C:\Program Files not in C:\Programme as installed before.
13. Added EPC/WIS keys.
14. Installed EPC database. (It will only take seconds as all files already there in the E:\db folder).
15. Tested EPC and working.
16. Installed WIS database. (It will also take only seconds as all files already there in the E:\db folder). It might ask for the EPC b1, use EPC 06.2016 B1 update DVD.
17. Tested WIS and working.
18. UpdateEPCand WIS to version 06.2016.
To your case I suggest that you follow my instructions except step 6 where registry keys are manually deleted. This could cause your operating system to malfunction if you are not sure what you are doing.
Also make sure that you use different ewa folder for installation. I suggest c:\ewa
Result:
It WORKS !!!! yes really works.
Working like a charm !
origrnal:http://blog.mbstartool.com/2016/07/12/epc-initialization-of-the-epc-database-has-failed/
Working like a charm !
origrnal:http://blog.mbstartool.com/2016/07/12/epc-initialization-of-the-epc-database-has-failed/
Posted by: mbbenzstar at
07:48 AM
| No Comments
| Add Comment
Post contains 413 words, total size 5 kb.
July 07, 2016
How to solve DAS Xentry working but WIS not installed solution
I have the problem with WIS standalone installation
Version: DAS 012012,MB StarC4
Version: DAS 012012,MB StarC4
LanID: 080002AF5490
1) Keys; checked and used 2 different keys, they are all - saved successfully
2) WIS is 012012
3) Modifyed d2ksetup.ini
4) Running sdswitch.exe
trying to install on "clean" system, Xentry DAS is working, but WIS (surprisingly) I cannot install.
2) WIS is 012012
3) Modifyed d2ksetup.ini
4) Running sdswitch.exe
trying to install on "clean" system, Xentry DAS is working, but WIS (surprisingly) I cannot install.
Solution found!
Problem only in permission on folder e:\wis
You need to do:
1) Right click on folder WIS disc E:
2) Select "Sharing and Security" menu
3) Click on Security tab
4) Select "Users" in "Group or user names:" list
5) in list "Permission for Users" check "Full control"
6) Press OK
and you doneï¼
Problem only in permission on folder e:\wis
You need to do:
1) Right click on folder WIS disc E:
2) Select "Sharing and Security" menu
3) Click on Security tab
4) Select "Users" in "Group or user names:" list
5) in list "Permission for Users" check "Full control"
6) Press OK
and you doneï¼
WIS installation reference:
Easiest way to avoid installation problem:
To buy Mercedes software HDD or SSD from fromhttp://www.mbstartool.com/wholesale/mb-star-software/
- all softwarepre-installed on the disk before delivery
http://blog.mbstartool.com/2016/07/07/xentry-das-working-but-wis-not-installed/
Posted by: mbbenzstar at
01:11 AM
| No Comments
| Add Comment
Post contains 157 words, total size 2 kb.
July 06, 2016
Free download Vediamo software Vediamo 5.00.05
Free download the latest Mercedes Vediamo softwareVediamo 5.00.05to use it offline for Mercedes car program, setting code, change the SA Code function... all can be done is similar to Xentry/DAS but can do far more detailed variant coding.
Free download vediamo files:
vediamo 5.00.05 software
https://mega.co.nz/#!Mlk1UQYB!FU3yDQAfTUN2w62IRzpDGDq_ARxmK8OvRXZza0pwtmE
vediamo 5.00.05 Patch
https://mega.co.nz/#F!l9dmhQDI!F-7JWMuEBoZBzAI-0qUOxQ
vediamo 5.00.05 database
https://mega.co.nz/#!gJMiyabT!wH2VNRjXB4eQ4sgBDaOgFfGhTZ2c8oHGRcW3_FPX2uk
vediamo 5.00.05 manual
https://mega.co.nz/#!sEdHwSbC!mqyEh5stFX6IcJ_JFAX1hDHK6XnKt276QZEZnY7i5is
or you download all for one time:
Vediamo v05.00.05 + CBF+CFF+Crack(8gb)
https://mega.nz/#F!FMR1zQDa!ruzVG7LslhNJUu6gnA5VUQ
Note: all Vediamo v05.00.05 files above are all FREE but TRY AT YOUR OWN RISK.
Mbstartool enginneers only tested Vediamo v05.00.05 software athttp://goo.gl/no2dSd
About testedVediamo v05.00.05
Vediamo 5.00.5 (Mercedes Vediamo Software) is used by the plant engineers to develop diagnosis and engineering software, which is now used by Xentry and DAS, is based on the Mercedes Benz super engineering version developed and delivered to the general customer service dealers’ use.
Vediamo - the advanced diagnostic application for engines- is a software system for electronic control unit (ECU) diagnostics which is integrated in the CAESAR/DIOGENES process chain. It allows diagnostics on any ECU over K-line as well as CAN, and encompasses all established protocols from RTMD+, MBISO, KWFB, KW2000 to UDS. Despite its name, Vediamo is no longer limited only to engine ECUs.
Vediamo is based on the Mercedes-Benz DCDI standard communication platform CAESAR and hence supports all communication hardware such as, e.g., Part C, Part A, Part Y, etc. DIOGENES data, used by all diagnostics applications in the company and which can be drawn from the central TAMINO data base, can be used as diagnostics data.
Basic info
1- languages:English, German
2- activation: one-time activation at mbstartool
3- function limitation: no limitation in diagnosis / modification / programming function
4- workable device: all serial number ofSD connect c4
Vediamo V05.00.05 vs. Vediamo V4.002
The V4.00 version that used COMPACT 3 while SDconnect C4 does not support the ODX file. The latest V5.00.05 SD Connect supports ODX file and SD connects speed is relatively stable.
Vediamo vs. Xentry/DAS
Mercedes vediamo i's similar in purpose to Xentry but can do far more detailed variant coding, without the need to have an online connection to Daimler AG servers for authorization. In Xentry, variant coding is restricted, and even then once authorization is granted, the coding options are limited in comparison to Vediamo.
Spend some time looking around on the internet for a download link for it, you'll also need to have it activated with your hardware ID, etc.
Vediamo V05.00.05latest feedback
I have Vediamo installed along withXentry 2016/03, but no manual for it, my MB SD C4 multiplexer connects with Vediamo just fine.
http://blog.mbstartool.com/2016/07/06/vediamo-5-00-05-free-download-and-feedback/
Posted by: mbbenzstar at
03:43 AM
| No Comments
| Add Comment
Post contains 437 words, total size 7 kb.
July 05, 2016
How to run MB Star XENTRY DAS on Macbook Air
"I have an unusedAirbook from 2010running snow leopard as op sys and equipped as usual witha 112 GB solid state disc, a WIFI and one USB portto the external world. Of course, it is based on the Intel platform.As I love these light and beautifully designed machines, I was thinking about using it for something else then letting it accumulate dust in a drawer. DAS/Xentry came to mind and I spent a weekend to get it up and running.
I needed three attempts:
Like in my PC installations I skipped his step 6 (VBoxService installation). On a PC, I always get two error messages while installing the first of the two DVD's. The first one (no .....getspdir file or similar text) I ignore and a bit later another error would come up saying '...cannot create .../../HHTwin.ini file'. Before acknowledging this error I create a HHTWin dir at the location given in the error message and then I 'yes' to continue the installation. Maybe this is known to experts, I figured it out by coincidence. Without creating the HHTWin, the installation process automatically installs Xentry as well. Creating thesubdir, the installation follows exactly the skdrasher script and needs the extra step for Xentry installation.
This is a user experience of running the entire suite of Mercedes-Benzsd connect c4software XENTRY / DAS on a Macbook air.
"I have an unusedAirbook from 2010running snow leopard as op sys and equipped as usual witha 112 GB solid state disc, a WIFI and one USB portto the external world. Of course, it is based on the Intel platform.As I love these light and beautifully designed machines, I was thinking about using it for something else then letting it accumulate dust in a drawer. DAS/Xentry came to mind and I spent a weekend to get it up and running.
I needed three attempts:
First attempt: Update of the machine to the new mountain lion op sys. Then I ran Bootcamp to partition the disc into40Gb for the Mac and approx.70 Gb for Windows. I used Refit to get a comfortable dual boot manager. During installation I realised that the newest version of Bootcamp (part of mountain lion) only supports Win7 and upwards. Thus I continued with Win7 and as the effort to get Xentry running under Win7 was too big and I progressed too slowly, I experimented withWin7 and VMWare running Xentry in a virtual XP machine. This turned out to betoo slowfor my taste but it is probably a reasonable option for a more powerful Mcbook Pro. Someone in the forum has asimilar thing with Xentry/DAS 11/2012 but on win xp thru Parallels desktop on my Macbook Pro and had same error HHTwin.ini but carried on. Then successfully installing WIS 11/2012 and EPC 8/2012 without any problems.And it’s said that his DAS worked well with mercedes w202 cdi220 by SD connect c4 (lan connection).
Second attempt: I loaded the older snow leopard as op sys because its Bootcamp version supports Win XP. I made adual boot with XP, using Refit again, and started to install DAS/Xentry. I encountered limitations by the single USB port and worked around with an external USB-Hub to have an external DVD drive, a dual button mouse (more comfortable to use under XP than the trackpad) and a USB stick connected at the same time. Problem here was that theUSB port was somehow overloaded and hung up twice. I abandoned this as well and applied the big gun.
Third attempt: I went for a XP-only installation, applied the special Mac drivers after the first boot into XP and installedDAS/Xentry 11.2012(the only offline scn coding/programming version without issues)according to the SKdrasher script but with some modifications.
Like in my PC installations I skipped his step 6 (VBoxService installation). On a PC, I always get two error messages while installing the first of the two DVD's. The first one (no .....getspdir file or similar text) I ignore and a bit later another error would come up saying '...cannot create .../../HHTwin.ini file'. Before acknowledging this error I create a HHTWin dir at the location given in the error message and then I 'yes' to continue the installation. Maybe this is known to experts, I figured it out by coincidence. Without creating the HHTWin, the installation process automatically installs Xentry as well. Creating thesubdir, the installation follows exactly the skdrasher script and needs the extra step for Xentry installation.
Now I have a very stylish and compact machine when I work around my cars. Next weekend I will install EPC (electronic parts catalogue) and SD media.â€
Posted by: mbbenzstar at
02:24 AM
| No Comments
| Add Comment
Post contains 569 words, total size 4 kb.
July 04, 2016
How to print Mercedes WIS as print PDF
How much do you know about
Mercedes WIS(workshop information system) print function? All useful tips are offered here by experienced users. To print Mercedes WIS, that is:
When the Print window pops up, check print to file, name the file, then you can copy and paste the file from the VM to the native system. If that doesn't work you can create a shared folder (between the VM and host system) and print to it. Hope some of this helps
Where to get WIS software?
Get MB STAR C3, SD connect c4 software from a credible web, like
mbstartool.com.
Note that many free WIS usually will expire in the near future or not full info there.
Is there any way I can download the docs and save them in soft form?
Go to print them and then change it from your printer to PDF printer in the menu.
What is Print function?
The "Print Functions" submenu enables a direct selection of the area of the document to be printed.
"Print Functions" window when printing out a wiring diagram
i . All information can be printed.
. A page break generally follows before or after a picture or on a table line.
. The number of screen pages is not identical to the number of pages printed.
"Print Functions" window when printing out a wiring diagram:
Whole document -Prints the document from the first page to the last.
Screen -Prints the mask which can be seen on the screen.
Pages -Activates the "fm", "to" input boxes.
Scale in % -For entering a scale in %.
Example: If you wish to print out four pages with a scale of 100 %, the printout can be reduced
to two pages if scaled to 50 %. The wiring diagram is then correspondingly smaller on the printout.
On the other hand, a very small wiring diagram can be shown three times larger on the printout
with a scale of 300 %.
i This function is only offered for printing out wiring diagrams.
Fit To Page -The wiring diagram is scaled in such a way that the entire wiring diagram is printed out on one
page.
i This function is only offered for printing out wiring diagrams.
fm, to -For entering specific page numbers.
Cover page -Prints in addition a cover page with the information: Name, user, document number, document title and validation.
i With wiring diagrams, the legend for the wiring diagram is also printed.
Print -Opens the print option window.
Continue -Closes the "Print Functions" window.
What is neededto print directly from WIS as well as print pdfs?
Printvia Cute PDF
Windows 7 with standard printer drivers. An example pdf is attached.
How do you print?
Click the little printer sign and then a box opens and you choose parts list or picture, then either print onto paper or as a PDF.
How to setup a portrait or landscape format when print?
After calling the Print Functions using "Document Functions/Print", a default Print option window is opened as well. This is to be used mainly for setting a portrait or landscape format.
The following settings are possible:
. Printer
. Paper size
. Page format
. etc.
The printer driver "HP5SIMX" has been used as an example.
The Print option window may look different depending on the printer driver being used.
An overview of the most important functions:
i It is assumed you have basic knowledge of Windows. The full functions of the Print option window can be found in the usual manuals.
1Print range -The setting "All" is always active and cannot be changed.
i Restriction to specific pages is set in the "Print Functions" WIS mask and has a limited function
at the present time.
2Properties -Calls the properties for the printer selected.
3Alignment -For setting the paper format desired (portrait or landscape).
i . If individual characters are not printed out as shown on the screen, make sure in the printer properties that True Type fonts have been loaded in the printer as soft font.
. If the entire page is not printed, we recommend you reduce the graphics resolution until the whole page is printed
correctly.
. You must make sure that there are sufficient system resources available for the document and screen print. A graphics printout with a higher resolution may produce better quality pictures but may also lead to system errors
if there are not enough system resources.
. Please make sure of the following when setting a higher resolution:
— The printer has sufficient main memory.
— Workstation/Server have sufficient disk memory for temporary external files.
— The workstation has sufficient main memory/virtual memory to be able to perform the graphics editing.
What should you pay attention to?
Keep in mind the virtualPChas a control panel, just like the original OS, where you select the default printer. Just pick PDF as the default, and you will produce legible PDF's whereever you want to save them. Screenshot below of the print dialogue within virtual Windows XP plus attached PDF produced in this manner. My print dialog shows six printer choices, your mileage may vary...
Whenever I try to create or print files some symbols don’t get converted right or when I try to print directly fromwis, some symbols don’t get printed right. How to fix it?
A quick guess would be that you have a limited number of fonts installed on your computer or a skewed font substitution table.
A quick guess would be that you have a limited number of fonts installed on your computer or a skewed font substitution table.
Microsoft KB article on font substitution
Adobe article on font substitution
Microsoft makes a library of commonwebfonts available.
You might also want to check that your local printer is properly configured and has the latest driver.
Posted by: mbbenzstar at
02:24 AM
| No Comments
| Add Comment
Post contains 956 words, total size 11 kb.
July 01, 2016
How to install WIS EPC 2015.10 for SD Connect C4
"I have an unusedAirbook from 2010running snow leopard as op sys and equipped as usual witha 112 GB solid state disc, a WIFI and one USB portto the external world. Of course, it is based on the Intel platform.As I love these light and beautifully designed machines, I was thinking about using it for something else then letting it accumulate dust in a drawer. DAS/Xentry came to mind and I spent a weekend to get it up and running.
I needed three attempts:
Like in my PC installations I skipped his step 6 (VBoxService installation). On a PC, I always get two error messages while installing the first of the two DVD's. The first one (no .....getspdir file or similar text) I ignore and a bit later another error would come up saying '...cannot create .../../HHTwin.ini file'. Before
This is a user experience of running the entire suite of Mercedes-Benzsd connect c4software XENTRY / DAS on a Macbook air.
"I have an unusedAirbook from 2010running snow leopard as op sys and equipped as usual witha 112 GB solid state disc, a WIFI and one USB portto the external world. Of course, it is based on the Intel platform.As I love these light and beautifully designed machines, I was thinking about using it for something else then letting it accumulate dust in a drawer. DAS/Xentry came to mind and I spent a weekend to get it up and running.
I needed three attempts:
First attempt: Update of the machine to the new mountain lion op sys. Then I ran Bootcamp to partition the disc into40Gb for the Mac and approx.70 Gb for Windows. I used Refit to get a comfortable dual boot manager. During installation I realised that the newest version of Bootcamp (part of mountain lion) only supports Win7 and upwards. Thus I continued with Win7 and as the effort to get Xentry running under Win7 was too big and I progressed too slowly, I experimented withWin7 and VMWare running Xentry in a virtual XP machine. This turned out to betoo slowfor my taste but it is probably a reasonable option for a more powerful Mcbook Pro. Someone in the forum has asimilar thing with Xentry/DAS 11/2012 but on win xp thru Parallels desktop on my Macbook Pro and had same error HHTwin.ini but carried on. Then successfully installing WIS 11/2012 and EPC 8/2012 without any problems.And it’s said that his DAS worked well with mercedes w202 cdi220 by SD connect c4 (lan connection).
Second attempt: I loaded the older snow leopard as op sys because its Bootcamp version supports Win XP. I made adual boot with XP, using Refit again, and started to install DAS/Xentry. I encountered limitations by the single USB port and worked around with an external USB-Hub to have an external DVD drive, a dual button mouse (more comfortable to use under XP than the trackpad) and a USB stick connected at the same time. Problem here was that theUSB port was somehow overloaded and hung up twice. I abandoned this as well and applied the big gun.
Third attempt: I went for a XP-only installation, applied the special Mac drivers after the first boot into XP and installedDAS/Xentry 11.2012(the only offline scn coding/programming version without issues)according to the SKdrasher script but with some modifications.
Like in my PC installations I skipped his step 6 (VBoxService installation). On a PC, I always get two error messages while installing the first of the two DVD's. The first one (no .....getspdir file or similar text) I ignore and a bit later another error would come up saying '...cannot create .../../HHTwin.ini file'. Before
his is the instruction on how to install Workshop Information System V2015.10 for 2015.09 star diagnosticmb sd connect c4multiplexer.
Free download MB WIS ASRA 10/2015 FULL Torrent:
https://www.dropbox.com/s/bwotrms6vi7o3vg/WIS_1015.zip?dl=0
Version:3.11.12.0
Language:Multilingual
Crack:None
Description:Mercedes-Benz WIS / ASRA Information Base repair of cars and trucks, Mercedes-Benz buses for the European and American markets.
Version:3.11.12.0
Language:Multilingual
Crack:None
Description:Mercedes-Benz WIS / ASRA Information Base repair of cars and trucks, Mercedes-Benz buses for the European and American markets.
Extras. Info.:This is a full release, suitable for installation "from scratch."
WIS installation instruction:
Install Admin Tool
Select start
Internet Explorer prompt: select Yes.
Select Start registration.
Select Run at the bottom prompt.
Select Run at the bottom prompt.
Installing ...
Select a language and click OK.
Click Next.
Click Next.
Installing EWA...
Click Next.
Finished installing EWA Admin Tool, and click Finish.
Check WIS Startkey
Select Startkey and copy NAC address to ID in HP-EVA Keygen interface.
Set the Expiration dates.
Copy EPCnet to its Startkey, and WISnet to its Startkey.
Close HP-EVA Keygen interface.
Click Save in EWA Admin Tool.
Startkey successfully saved. Click Exit.
Install WIS database
Select WIS and click Install WIS database.
Prompt: WIS installation
1 check WIS Startkey
2 check WIS information medium
3 copy all WIS files to hard disk
4 install new EWA software version (optional)
5 test new WIS database
6 install new WIS database
7 carry out correction of work steps
8 set up latest WIS documents
Installing WIS database...
Click Continue.
Click Continue.
Click Confirm.
Click Continue.
Click Continue.
Click Continue.
WIS database installation completes.
Click Exit.
Select Yes to exit Admin Tool.
Set up EWA
Select Favorites>>EWA net>>EWA net.
" />Enter User and Password (admin, admin) to Log in.
Change password and click OK.
Select Workshop.
Workshop: 123
Country: U.S.A.(705)
Click Save.
Select Group>>Administrator group.
Select EPC access authorization: As workshop access authorization
Select WIS/ASRA access authorization: As workshop access authorization
Click Save.
Click OK.
Run EWA
Again, select Favorites>>EWA net>>EWA net.
Log in with new password.
Click WIS/ASRA.
Close the interface of " WIS/ASRA-what’s new...â€
WIS diagnostic interface...
(note: Mercedes software 2015.09 forMB SD C4atmbstartoolcomes with pre-installed WIS, no need to install yourself)
Posted by: mbbenzstar at
06:44 AM
| No Comments
| Add Comment
Post contains 812 words, total size 16 kb.
<< Page 1 of 1 >>
103kb generated in CPU 0.0258, elapsed 0.0754 seconds.
32 queries taking 0.0576 seconds, 108 records returned.
Powered by Minx 1.1.6c-pink.
32 queries taking 0.0576 seconds, 108 records returned.
Powered by Minx 1.1.6c-pink.
